Mori Seiki NMV Programming G-codes and M-codes complete lists for cnc machinists programmers who work on Mori Seiki machining centers.
Image: HEINZ BAUMGARTNER AG
DMG MORI has established large scale parts centers in seven strategic locations around the world to provide the best possible post sale service for all customers. America American Parts Center (Dallas) Germany Global Parts Center (Geretsried) India India Parts Center (Chennai) Russia Russia Parts Center. List of Alarms 1.1 Operation Alarms I - 1 1. List of Alarms 1.1 Operation Alarms (The bold characters are the messages displayed on the screen.) M01 OPERATION ERROR Alarms occurring due to incorrect operation by the operator during NC operation and those by machine trouble are.
These G and M Codes applies to following Mori Seiki Models with listed below NC units.
Model

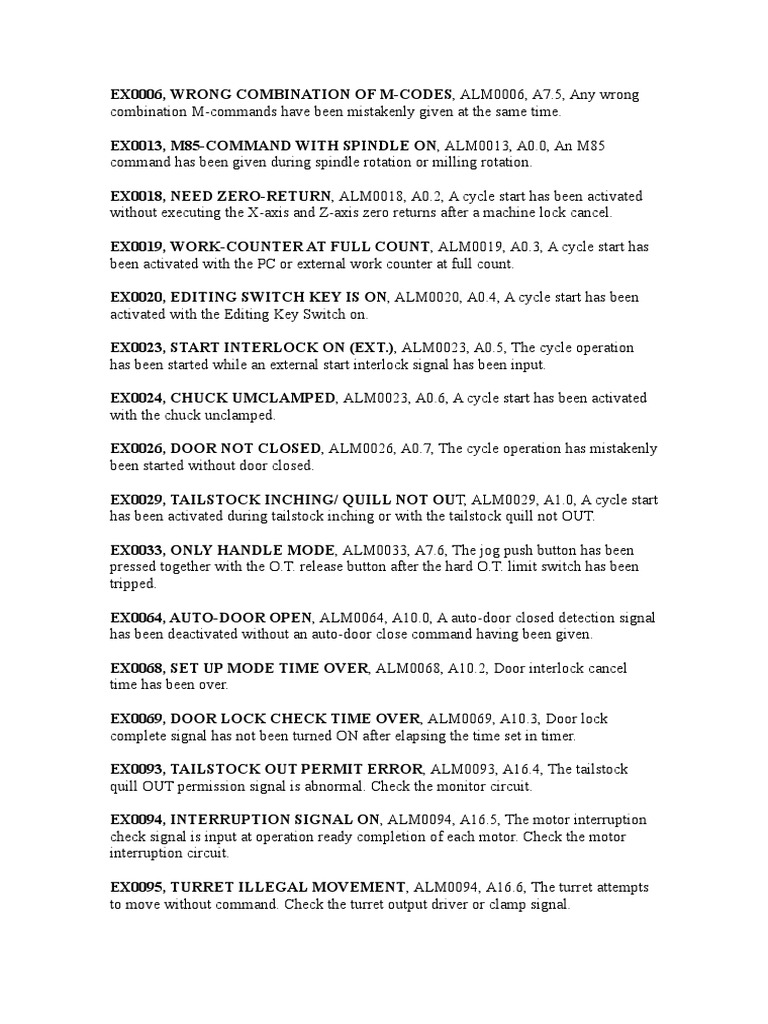

Dmg Mori Seiki Alarm Listing
- NMV1500 DCG
- NMV3000 DCG
- NMV5000 DCG
- NMV8000 DCG/40
- NMV8000 DCG/50
NC Unit
DMG MORI is a worldwide leader of cutting machine tools for turning and milling, as well as a comprehensive supplier in additive manufacturing. TECHNOLOGY EXCELLENCE 01-2021 The new TECHNOLOGY EXCELLENCE MAGAZINE Issue 01-2021. World Premiere 2021 M1: The new master class for every shop floor.
Fanuc 10/11/12 Alarms Fanuc Series 15 Alarms Fanuc 15i Alarms Fanuc 16i 18i Alarms Fanuc 21 Alarms Fanuc 21i Alarms Fanuc Alarms Fanuc Spindle Alarms Fanuc 6M 6T Alarms D.Electron Z32 Alarms Complete list of Z32 CNC alarm codes. Find all downloads containing information on DMG MORI turning centers and milling machines, service and software products at dmgmori.com. Download Center. Product Highlights. DMU 50 3 rd Generation.
- MSX-701 IV
- MSX-711 IV
Contents
- Mori Seiki G Codes and M Codes
Mori Seiki G Codes and M Codes
G Codes
| G Code | Function |
|---|---|
| G00 | Positioning |
| G01 | Linear interpolation |
| G02 | Circular interpolation/helical interpolation/spiral interpolation/conical interpolation, CW (clockwise) |
| G02.2 | Involute interpolation, CW (clockwise) |
| G02.3 | Exponential interpolation,CW (clockwise) |
| G03 | Circular interpolation/helical interpolation/spiral interpolation/conical interpolation, CCW (counterclockwise) |
| G03.2 | Involute interpolation, CCW (counterclockwise) |
| G03.3 | Exponential interpolation, CCW (counterclockwise) |
| G04 | Dwell/Exact stop |
| G05 | AI contour control II high-speed processing (number of blocks read ahead: 1000) (high-precision contour control compatibility command) |
| G05.1 | AI contour control II high-speed processing (number of blocks read ahead: 1000) / Nano smoothing/Smooth interpolation |
| G06.2 | NURBS interpolation |
| G07 | Hypothetical axis interpolation |
| G07.1(G107) | Cylindrical interpolation/Cutting point offset for cylindrical interpolation |
| G08 | AI contour control (look-ahead control compatibility command) |
| G09 | Exact stop |
| G10 | Data setting |
| G10.6 | Tool retraction data |
| G11 | Data setting mode cancel |
| G12.1 | Polar coordinate interpolation mode |
| G13.1 | Polar coordinate interpolation mode cancel |
| G15 | Polar coordinate command cancel |
| G16 | Polar coordinate command |
| G17 | XY plane |
| G18 | ZX plane |
| G19 | YZ plane |
| G20 | Data input in inch system |
| G21 | Data input in metric system |
| G22 | Stored stroke check function ON |
| G23 | Stored stroke check function OFF |
| G27 | Zero return check |
| G28 | Automatic zero return |
| G29 | Return from zero point |
| G30 | Second/third, fourth zero return |
| G30.1 | Floating reference point return |
| G31 | Skip function |
| G33 | Thread cutting/synchronizes feed |
| G34 | Variable lead threading |
| G35 | Circular threading CW |
| G36 | Circular threading CCW |
| G40 | Tool radius offset cancel/Tool nose radius offset cancel |
| G41 | Tool radius offset, left/Tool nose radius offset, left |
| G42 | Tool radius offset, right/Tool nose radius offset, right |
| G41.2 | Cutter compensation for 5-axis machining left (type 1) |
| G41.3 | Cutter compensation for 5-axis machining (leading edge offset) |
| G41.4 | Cutter compensation for 5-axis machining left (type 1) (MSX-5** compatible command) |
| G41.5 | Cutter compensation for 5-axis machining left (type 1) (MSX-5** compatible command) |
| G41.6 | Cutter compensation for 5-axis machining left (type 2) |
| G42.2 | Cutter compensation for 5-axis machining right (type 1) |
| G42.4 | Cutter compensation for 5-axis machining right (type 1) (MSX-5** compatible command) |
| G42.5 | Cutter compensation for 5-axis machining right (type 1) (MSX-5** compatible command) |
| G42.6 | Cutter compensation for 5-axis machining right (type 2) |
| G40.1 (G150) | Normal direction control cancel mode |
| G41.1 (G151) | Normal direction control ON (left side) |
| G42.1 (G152) | Normal direction control ON (right side) |
| G43 | Tool length offset, + |
| G43.1 | Tool length compensation in tool axis direction |
| G43.4 | Tool center point control (type 1)/Smooth velocity control |
| G43.5 | Tool center point control (type 2) |
| G43.7 | Tool length offset for turning |
| G43.8 | Cutting point control (type 1) |
| G43.9 | Cutting point control (type 2) |
| G44 | Tool length offset, − |
| G45 | Tool position offset, increase |
| G46 | Tool position offset, decrease |
| G47 | Tool position offset, double-increase |
| G48 | Tool position offset, double-decrease |
| G49 | Tool length offset cancel/Tool center point control cancel |
| G50 | Scaling cancel/Programmable mirror image cancel (negative magnification) |
| G51 | Scaling/Programmable mirror image (negative magnification) |
| G50.1 | Programmable mirror image cancel |
| G51.1 | Programmable mirror image |
| G50.2 | Polygon cutting cancel |
| G51.2 | Polygon cutting |
| G52 | Local coordinate system setting |
| G53 | Machine coordinate system selection |
| G53.1 | Tool axis direction control |
| G54 | Work coordinate system 1 selection/Additional work coordinate system selection |
| G54.1 | Additional work coordinate system selection |
| G54.2 | Rotary table dynamic fixture off-set function |
| G54.4 | Work setting error offset |
| G55 | Work coordinate system 2 selection |
| G56 | Work coordinate system 3 selection |
| G57 | Work coordinate system 4 selection |
| G58 | Work coordinate system 5 selection |
| G59 | Work coordinate system 6 selection |
| G60 | Uni-directional approach |
| G61 | Exact stop mode |
| G62 | Automatic corner override mode |
| G63 | Tapping mode |
| G64 | Cutting mode (exact stop check mode) |
| G65 | Macro call |
| G66 | Macro modal call (call after execution of axis movement commands) |
| G66.1 | Macro modal call (call in each block) |
| G67 | Macro modal call cancel |
| G68 | Coordinate rotation/3D coordinate conversion |
| G68.2 | Tilted working plane command (euler angle) |
| G69 | Coordinate rotation cancel/3D coordinate conversion cancel |
| G72.1 | Copy-rotation |
| G72.2 | Copy-shift |
| G73 | High-speed deep hole drilling cycle |
| G74 | Reverse tapping cycle |
| G76 | Fine boring cycle |
| G80 | Chopping mode OFF/Hole machining canned cycle cancel |
| G81 | Spot drilling cycle |
| G81.1 | Chopping |
| G82 | Counter boring cycle |
| G83 | Deep hole drilling cycle |
| G84 | Tapping cycle |
| G84.2 | Synchronized tapping cycle (F15 format) |
| G84.3 | Reverse synchronized tapping cycle (F15 format) |
| G85 | Boring cycle |
| G86 | Boring cycle |
| G87 | Back boring cycle |
| G88 | Boring cycle |
| G89 | Boring cycle |
| G90 | Absolute command |
| G91 | Incremental command |
| G92 | Work coordinate system change/Maximum turning spindle speed setting |
| G92.1 | Work coordinate system preset |
| G93 | Inverse time feed |
| G94 | Feed per minute mode |
| G95 | Feed per revolution mode |
| G96 | Constant surface speed control |
| G97 | Controlling turning spindle at constant speed |
| G98 | Initial point return (hole machining canned cycle) |
| G99 | Point R return (hole machining canned cycle) |
| G107 | Cylindrical interpolation |
| G313 | Calling the load monitor macro program |
| G332 | Cutting mode selection / Specifying tolerance |
| G355 | Rotation axes measurement |
| G382 | Tilted working plane command (roll-pitch-yaw) |
M Codes
| M Code | Function |
|---|---|
| M00 | Program stop |
| M01 | Optional stop |
| M02 | Program end |
| M03 | Spindle start(normal) |
| M04 | Spindle start(reverse) |
| M05 | Spindle stop |
| M06 | Tool change |
| M08 | Coolant discharge ON |
| M09 | Oil shot OFF Coolant discharge OFF |
| M10 | C-axis clamp |
| M11 | C-axis unclamp |
| M19 | Spindle orientation |
| M20 | Automatic power shut off |
| M21 | External output |
| M22 | External output |
| M23 | External output |
| M24 | External output |
| M25 | External output |
| M26 | External output |
| M27 | External output |
| M28 | External output |
| M29 | Synchronized tapping mode |
| M30 | Program end and rewind |
| M31 | Axis interlock bypass ON |
| M32 | Axis interlock bypass OFF |
| M33 | Tool return |
| M44 | Table-mount sensor UP |
| M45 | Table-mount sensor DOWN |
| M46 | Sensor selection signal ON |
| M47 | Sensor selection signal OFF |
| M48 | Override cancel OFF |
| M49 | Override cancel ON |
| M50 | Oil-hole drill coolant ON |
| M51 | Air blow ON |
| M53 | Sensor air blow ON |
| M55 | Oil mist ON |
| M58 | Sensor air blow OFF |
| M59 | Air blow OFF |
| M60 | APC start command |
| M61 | APC start command |
| M66 | Tool skip ON |
| M68 | B-axis clamp |
| M69 | B-axis unclamp |
| M70 | Work counter/total counter |
| M72 | Chip removal coolant ON |
| M73 | Y-axis mirror image OFF |
| M74 | Y-axis mirror image ON |
| M75 | X-axis mirror image OFF |
| M76 | X-axis mirror image ON |
| M77 | External output |
| M80 | Shower coolant ON |
| M81 | Shower coolant OFF |
| M82 | Automatic door open |
| M83 | Automatic door close |
| M84 | Load monitor (teaching, monitoring) mode ON |
| M85 | Load monitor (teaching, monitoring) mode OFF Adaptive control mode OFF |
| M86 | Adaptive control mode ON |
| M88 | Through-spindle coolant ON |
| M89 | Through-spindle coolant OFF |
| M90 | Tool-spindle/ turning spindle simultaneous operation mode ON |
| M91 | Tool-spindle/ turning spindle simultaneous operation mode OFF |
| M95 | Chip removal coolant OFF |
| M96 | Macro interrupt mode |
| M97 | Macro interrupt mode cancel |
| M98 | Sub-program call in NC memory |
| M99 | Sub-program end Repeat program |
| M119 | Spindle (second) orientation |
| M120 | External output |
| M121 | External output |
| M122 | External output |
| M123 | External output |
| M124 | External output |
| M125 | External output |
| M126 | External output |
| M127 | External output |
| M128 | External output |
| M129 | External output |
| M144 | Optical sensor power ON |
| M145 | Optical sensor power OFF |
| M165 | Oil-hole air blow ON |
| M166 | Cs contouring control mode |
| M167 | Cs contouring control mode cancel |
| M180 | Mist collector ON |
| M181 | Mist collector OFF |
| M182 | Auxiliary output 2 ON |
| M183 | Auxiliary output 2 OFF |
| M192 | ATC preparation mode ON |
| M193 | ATC preparation mode OFF |
| M198 | Subprogram call in external I/O device |
| M200 | Chip conveyor start (forward direction) |
| M201 | Chip conveyor stop |
| M203 | Turning spindle start (normal) |
| M204 | Turning spindle start (reverse) |
| M205 | Turning spindle stop |
| M216 | Lubrication cycle start for break-in operation |
| M226 | Semi dry ON |
| M227 | Semi dry OFF |
| M229 | ID reader forward |
| M230 | ID reader return |
| M252 | Through-spindle air blow ON |
| M253 | Through-spindle air blow OFF |
| M258 | Automatic opening/closing protector open |
| M259 | Automatic opening/closing protector close |
| M270 | Coolant discharge pressure level 0 |
| M271 | Coolant discharge pressure level 1 |
| M272 | Coolant discharge pressure level 2 |
| M273 | Coolant discharge pressure level 3 |
| M274 | Coolant discharge pressure level 4 |
| M275 | Coolant discharge pressure level 5 |
| M276 | Coolant discharge pressure level 6 |
| M277 | Coolant discharge pressure level 7 |
| M302 | Tool life count override set |
| M303 | Turning mode OFF (C-axis indexing mode ON) |
| M304 | Turning mode ON |
| M305 | End face coolant ON |
| M306 | End face coolant OFF |
| M510 | Fixture 1 clamp |
| M511 | Fixture 1 unclamp |
| M512 | Fixture 2 clamp |
| M513 | Fixture 2 unclamp |
| M514 | Fixture 3 clamp |
| M515 | Fixture 3 unclamp |
| M516 | Fixture 4 clamp |
| M517 | Fixture 4 unclamp |
| M608 | 3D interference checking function ON |
| M609 | 3D interference checking function OFF |
| M1003 | Spindle start (normal) |
| M1004 | Spindle start (reverse) |
| M1005 | Spindle stop |
| M1010 | C-axis clamp |
| M1011 | C-axis unclamp |
| M1019 | Spindle orientation |
| M1044 | Sensor down |
| M1045 | Sensor up |
| M1046 | Sensor selection signal ON |
| M1047 | Sensor selection signal OFF |
| M1068 | B-axis clamp |
| M1069 | B-axis unclamp |
| M1082 | Automatic door open |
| M2000 – M2020 | Multi counter display function |
Download multi player splitscreen re 5 .rar. CNC alarms and Error codes listing for CNC machines and controls, to help CNC machinists / programmers / setters to ease their job.
Image: Action Machinery Co., Inc.
Contents
Fanuc Alarms
Complete lists of Fanuc alarm codes.
Fanuc 10/11/12 Alarms
Fanuc Series 15 Alarms
Fanuc 15i Alarms
Fanuc 16i 18i Alarms
Fanuc 21 Alarms
Fanuc 21i Alarms
Fanuc Alarms
Fanuc Spindle Alarms
Fanuc 6M 6T Alarms
D.Electron Z32 Alarms
Complete list of Z32 CNC alarm codes.
D.Electron Z32 Alarms
Doosan Alarms
Complete lists of Doosan alarm codes.
Doosan MX Series Alarms
Doosan TT Series Alarms
GSK CNC Alarms
Dmg Mori Seiki Alarm Listen To
GSK 980 TD / GSK 980 TDb / GSK 980 TDc alarm list
GSK CNC Alarm list
Haas Alarms
Dmg Mori Seiki Error Codes
Haas Alarm Codes (Error Codes) for CNC Machinists.
Haas Alarm Codes
Mazak Alarms
Complete list of Mazak alarm codes.
Mazak System/Drive error ( No. 1 – No. 99, No. 1000 – No. 1099 )
Mazak CNC machine control error ( No. 100 – No. 199, No. 1100 – No. 1199 )
Mazak PLC machine control error ( No. 200 – No. 399, No. 1200 – No. 1399 )
Mazak CNC screen operation error ( No. 400 – No. 499, No. 1400 – No. 1499 )
Mazak I/O error ( No. 500 – No. 599, No. 1500 – No. 1599 )
Mazak MAZATROL program error ( No. 600 – No. 699, No. 1600 – No. 1699 )
Mazak MAZATROL program error ( No. 700 – No. 799, No. 1700 – No. 1799 )
Mazak EIA/ISO program error ( No. 800 – No. 899, No. 1800 – No. 1899 )
Mazak EIA/ISO program error ( No. 900 – No. 999, No. 1900 – No. 1999 )
Mazak Interference error ( No. 2100 – No. 2199 )
NUM CNC Alarms
NUM CNC control Errors List for NUM 1020/1040/1060
NUM CNC Alarms
Osai CNC Alarms
Osai 10 Series CNC Error Messages complete list.
Osai 10 Series CNC Alarms Error Messages
Dmg Mori Seiki Alarm List Full
Yasnac Alarms
Dmg Mori Seiki Alarm Listening
Yaskawa Yasnac alarms lists.
Yasnac 2000G Alarms
Yasnac 2000B Alarms
Yasnac 3000G Alarms
Yasnac J50 Alarms
Yasnac LX1 Alarms
Yasnac LX2 Alarms
Yasnac LX3 Alarms
Yasnac Mx1 Alarms
Yasnac MX2 Alarms
Yasnac MX3 Alarms
